A complete system for positioning the whole body in radiotherapy that accurately and stably fixes the upper body, shoulders, head and pelvis. This system is divided into two groups: Solo Align and Due Align, whose base is made of lightweight but durable carbon fiber.
A Groin Lock to enhance pelvic mask fixation, which can be easily connected and removed.

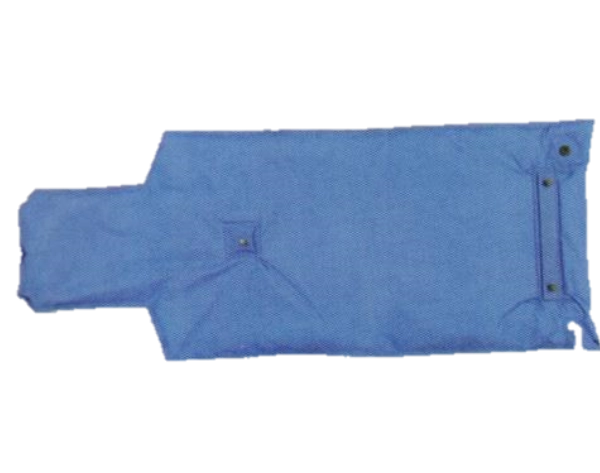

Custom vacuum bags attach to the baseplate for better customization.

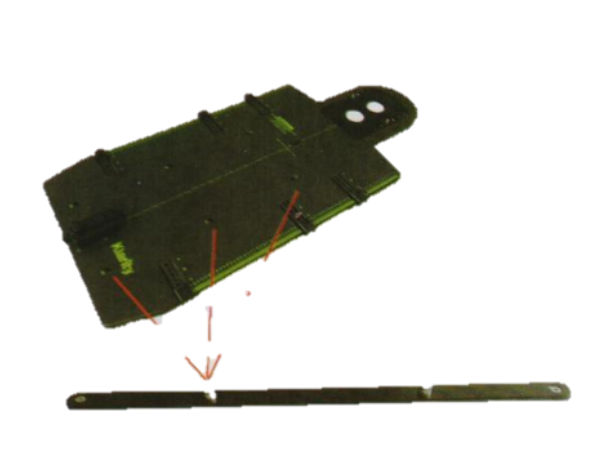

Three pairs of indexing holes

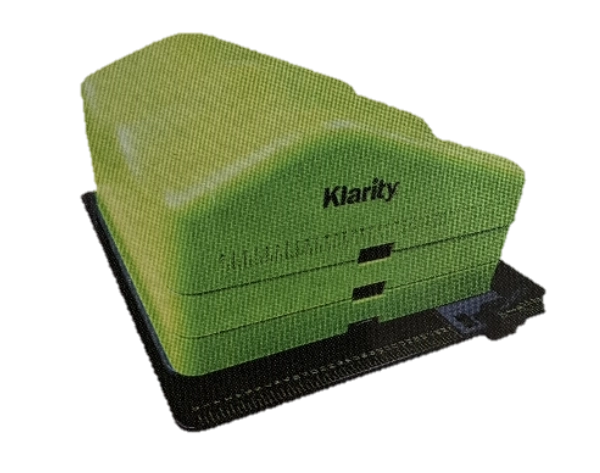

The Movable KneeFix Set are comfortable foam cushions for ergonomic and adjustable knee and leg support. The cushions have a movable range of 0-46cm and can easily be locked or unlocked to the Solo Align Baseplate. It comes with an acrylic baseplate, a KneeFix Cushion, and two Elevation cushions.

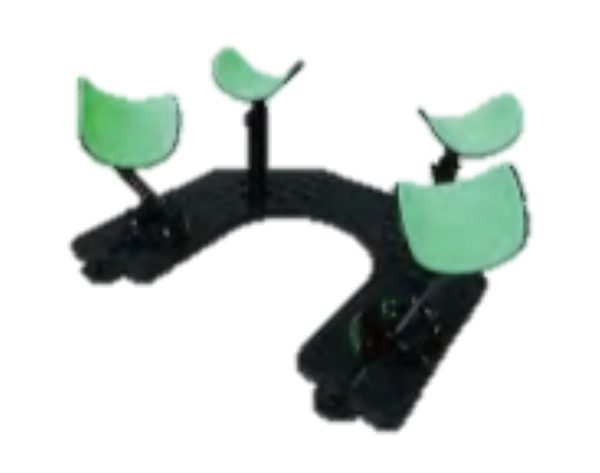

The Klarity Overhead Arm Support easily and securely connects to the Solo Align Baseplate. It allows for comfortable arm support to improve positioning accuracy and reproducibility. The height of the arm support is adjustable in six angles between 20-46°, and they have a rotating arc of 0-170°. The height of the Wrist Cup is adjustable between 18.5-25.4cm.
Also available as MR Compatible MR

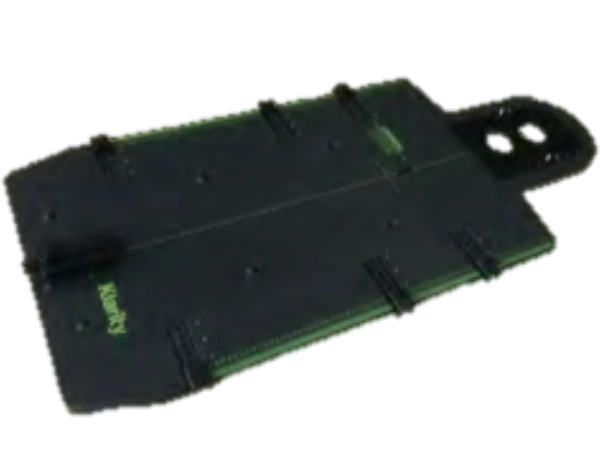

The Klarity-K™ Carbon Fiber baseplate can be used to immobilize the head, neck, shoulders, thorax, and pelvis for targeted as well as whole-body irradiation. It is compatible with S-type masks, and can be used with standard Silverman headrests.
124cm (Length) x 54cm (Width)
Also available as MR Compatible
It is a strong and lightweight carbon fiber plate that has minimal radiation exposure and is placed under the patient’s body to maintain their position during radiation treatment with the help of thermoplastics.
Head support is a device for precise stabilization of the patient’s head during radiotherapy, with an ergonomic design and the use of lightweight and resistant materials. This device allows for precise and repeatable positioning to increase radiation accuracy and maintain patient comfort.
Indexbars are responsible for fixing equipment on the radiotherapy bed and are selected according to the type of each device and are divided into three categories: Universal, For Elekta, and For Varian.
A strong, breathable mouthpiece. It is attached to the patient’s mouth using a quick-release toothpaste, making it safe and comfortable to use. No water or heating is required to activate the toothpaste. Once the BiteLok is attached to the patient’s mouth, a thermoplastic mask is placed over it. While the mask is still warm, the Quickfit tool molds the mask around the edges of the BiteLok™ mouthpiece without the need for hands. The result is a secure, repeatable mouthpiece that attaches to both the patient and the mask, and is also removable for cleaning.
In the SRS treatment technique, which is used to treat small brain tumors and high doses of radiation, patient fixation is of great importance. Given the high dose of radiation and the small size of the tumor, the error should be below 1 mm because the repeatability of the treatment position and anatomical position is of particular importance.
